Use and performance

  DMZ-SY-200 is specialized design for kinds of dosage liquid filled in small mouth container. All contacts with medium are SUS304 or 316L, such as liquid raw material, edible oil, additive, foodstuff and so on.

The main technical parameters

Equipment Components

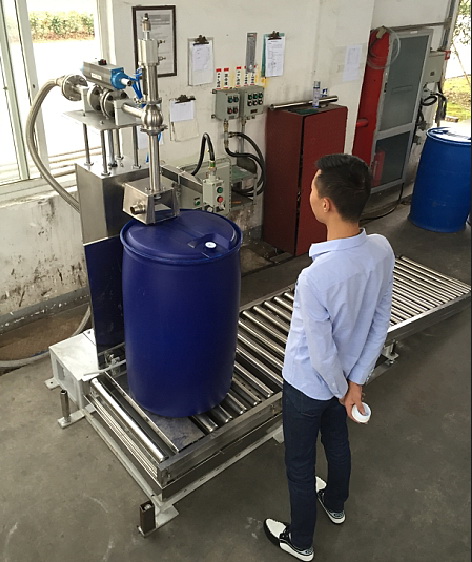

1.          Semi-automatic weight filling machine is composed of filling head lifting system,filling system,weighing system,frame, control system,non-power roller and pneumatic control system.

2.          Liquid filling  machine adopts Germany OB company technique. High measuring precision and can’t be influenced by material.

3. Weight value shows immediately.

4. Gross weight or net weight filling mode

5. Fast speed and slow speed of filling mode

6. In filling range, can be adjust filling weight.

7. Filling head and pipeline are easy to clean and joint.

8. All contact with material are made of SUS304 stainless steel, others are made of carbon steel spray paint.

Operation:　barrel putting by manual, press Start button, fast and slow feeding valves start automatically. When achieves setting point 1 to shut off fast feeding valves, to setting point 2 to shut off slow feeding valve.

Standard equipment:

Meter(chimei in shenzhen)、Sensor (Mettle in Changzhou)、Pneumatic organ (Airtac or Pneulead)　Explosion-proof (Feice)；

9.Buyer offers feeding pump: outlet’s pressure is ≥3-5Kg，flux≥25m³/h，filter,voltage,air source(air compressor)、inlet pipe and valve,besure the machine can working,constant voltage&constant current
