Application and performance

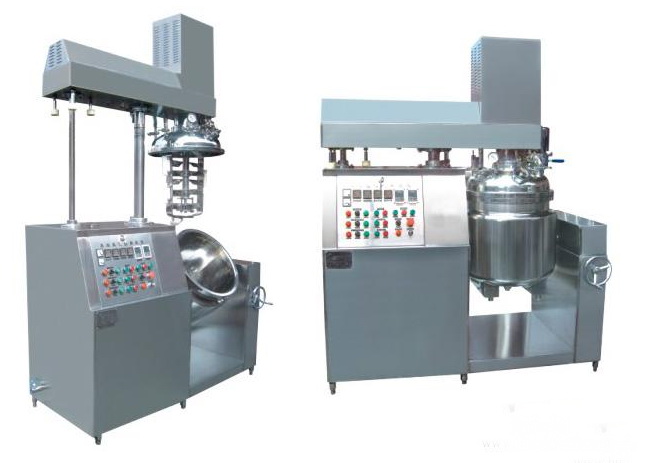

    DZJR-100L Vacuum homogenizer is specially designed for Cosmetics, Pharmaceutical, Chemical and other industry to produce cream, emulsion, ointment, and so on. It is button control, pretty appearance, small cubage, light, etc. All contacts are made of stainless steel, and the quick-assemble joints are DIN stand, which accord with GMP standard.

Components

    DZJR-100L Vacuum homogenizer is composed of Homogenizing pot with homogenizing and mixing, water pot, oil pot, vacuum system, lifting system and electrical control system.

Work theory

After mixing and heating in water and oil pot, the material is sucked to emulsifying pot by vacuum pump. There is a central mixer in the emulsifying machine to mix, tetrafluoroethylene scrapers to scrape material on the pot wall, meantime, the material form new interfaces continuously. Then the material is cut, compressed, mixed and blended by vane and rotary vane and flow to homogenizer at the bottom of pot. Afterwards, material is cut, impacted, crushed to 200nm-2um by strong high speed cutting wheel and fixed cutting cover once again. For the emulsifying pot is vacuum, the air produced in the mixing will be vacuumized immediately.

In the traditional production of high viscosity material, especially ointment, grease and emulsion, the finished products’ emulsion are instable or too rough for the big diameter granules and air-in. In order to solve the problems, we designed DZJR series vacuum homogeneous and emulsifying machine, including homogeneous mixer, central mixing vane and scarper, that is the excellent combination. Except that, the machine adopts vacuumizing to avoid air-in, so as to make sure the high quality finished products.The machine accords with GMP standards.

The main technical parameters
